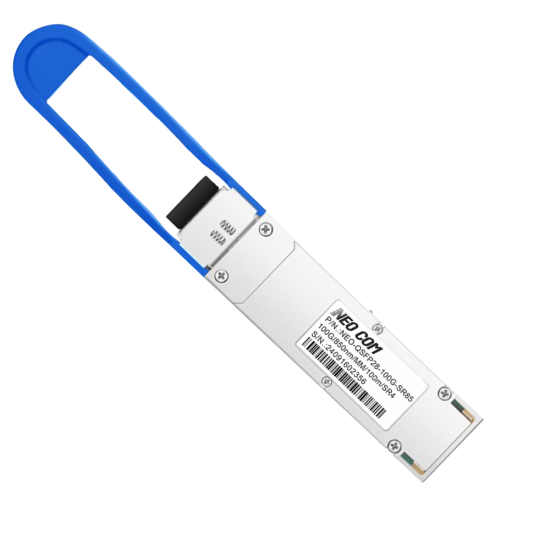

Name: NEO COM NEO-QSFP28-100G-SR85-01 100G SR4 LC QSFP28 Transceiver
Brand: NEO COM
Availability: InStock

NEO COM NEO-QSFP28-100G-SR85-01 100G SR4 LC QSFP28 Transceiver

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Add to Compare

Add to Wish List Compare this Product

Specification

Main Features
Application	Short‑range 100 Gigabit Ethernet links, data center interconnects, server‑to‑switch
Compatibility	Compatible with all standard 100G QSFP28 ports
Compliance Standards	QSFP28 MSA, SFF-8436, RoHS, CE, FCC, Class 1 Laser Safety
Connector Type	MPO/MTP‑12 (for SR4 multimode QSFP)
Material	Metal housing with EMI shielding
Maximum Humidity	5% – 85% (non-condensing)
MTBF	> 1,000,000 hours
Protocol Support	IEEE 802.3bm 100GBASE-SR4 / 100G Ethernet over multimode fiber
Type	QSFP28 100G Optical Transceiver
Physical Specification
Dimensions	72.5 × 18.35 × 8.5 mm
Form Factor	QSFP28 Hot‑Pluggable Module
Operating Temperature	0°C to +70°C (commercial grade)
Storage Temperature	–40°C to +85°C
Weight	Approx. 60g
Power, Build & OS
DDM/DOM Support	Yes, digital diagnostics monitoring supported
Power Consumption	< 4.5 W
Power Supply	From host QSFP28 slot
Voltage	3.3V DC
Performance
BER (Bit Error Rate)	≤ 1 × 10⁻¹²
Data Rate	100 Gbps (4 × 25G parallel lanes)
Fiber Core Size	50/125 µm
Fiber Type	Multimode Fiber (MMF)
Laser Type (TX/RX)	VCSEL Array / PIN Receiver Array
Link Budget	2.6 dB (per lane)
Modulation Type	NRZ
RX Sensitivity	≤ –6 dBm (per lane)
Transmission Distance	Up to 100 meters (OM4), ~70–90 m on OM3 (typical SR4 distances)
TX Power (Transmit Power	–3.4 dBm to +4 dBm (per lane)
Wavelength	850 nm
