Product Overview

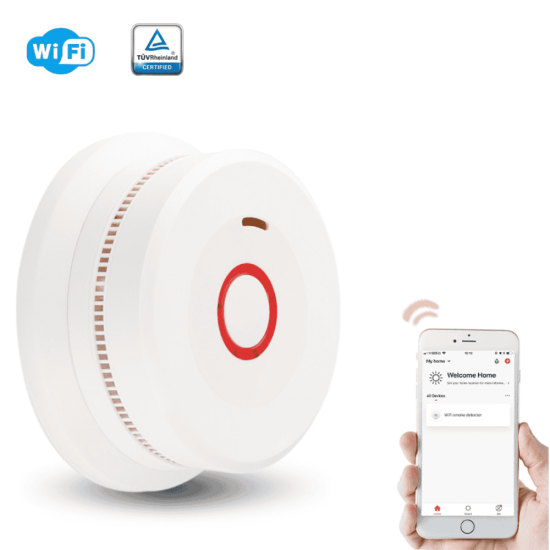

The NEO COM SD-432-WF Smoke Detector is a premium photoelectric smoke alarm designed to deliver early detection and protection in homes, offices, and mobile environments like caravans, boats, and camper vans. With advanced smoke sensing technology, it provides rapid alerts through audible alarms and flashing red LED indicators, ensuring safety for all occupants. The SD-432-WF integrates a dual-battery system: a non-replaceable 3V lithium battery for smoke detection lasting up to 10 years, and two AA replaceable batteries for its Wi-Fi module, offering uninterrupted monitoring.
Its connectivity with the Toya Smart Life app allows users to monitor alarms remotely, receive notifications, and manage settings from smartphones. Compact, energy-efficient, and fully compliant with EN14604 standards, the SD-432-WF provides versatile placement options across rooms, staircases, corridors, and more, making it an essential smart safety device for any property. Easy installation, weekly testing, and comprehensive error alerts make it a reliable choice for modern fire safety management.
Key Features
- Photoelectric smoke detection for early warning.
- Audible alarm ≥ 85 dB at 3 meters.
- Red LED indicator for normal, alarm, and silence modes.
- Test button for functionality verification.
- Silence mode with a 9-minute mute function.
- Interlinked mode for multi-alarm connection.
- Error alert system for maintenance reminders.
- Dual-battery system: 3V lithium non-replaceable + 2×AA for Wi-Fi.
- 10-year smoke detection battery life.
- Wi-Fi enabled for remote monitoring via the Tuya Smart Life app.
- Supports Android & iOS platforms.
- Smart Link and AP configuration modes.
- Compact design: Ø113.5 × H47 mm.
- Operating standard: EN14604 certified.
Applications
- Residential homes (bedrooms, living rooms, kitchens).
- Office buildings and commercial spaces.
- Hotels, hostels, and lodging facilities.
- Camper vans, caravans, and motorhomes.
- Boats and yachts.
- Staircases and corridors.
- Warehouses and storage areas.
- Smart home systems integration.
Installation Notes
- Install at least one smoke alarm 60 ㎡ on each floor.
- Place in each corridor and bedroom, preferably on the ceiling center.
- Mount at the top of each staircase.
- Maintain a 50 cm distance from walls or corners.
- Avoid moist areas, ventilation ducts, fluorescent lamps, and radiant heating sources.
- Avoid dead-air spaces, such as the angles of pitched roofs.
- Remove the mounting plate counterclockwise before installation.
- Press the smoke alarm into the mounting plate clockwise until it clicks.
- Test weekly by pressing the test button for 1 second.
Environmental / Operating Conditions
- Operating temperature: 0℃ ~ 50℃
- Maximum humidity: 95% RH
- Wi-Fi frequency: 2.4 GHz, supports 802.11 b/g/n
- Smoke sensitivity: 0.08 ~ 0.16 dB/m
- Voltage: 3V (built-in lithium battery)
- Quiescent current: ≤ 7–8 μA
- Alarm current: ≤ 50–80 mA
Global Availability
The NEO COM SD-432-WF Smoke Detector is available globally via authorized distributors, smart home retailers, and online platforms. Fully EN14604 certified and compatible with the Toya Smart Life app, it integrates seamlessly into smart home systems worldwide. Customers can enjoy easy installation, reliable monitoring, and real-time alerts from anywhere. International shipping and support services ensure that safety is accessible across homes, offices, and mobile applications.
