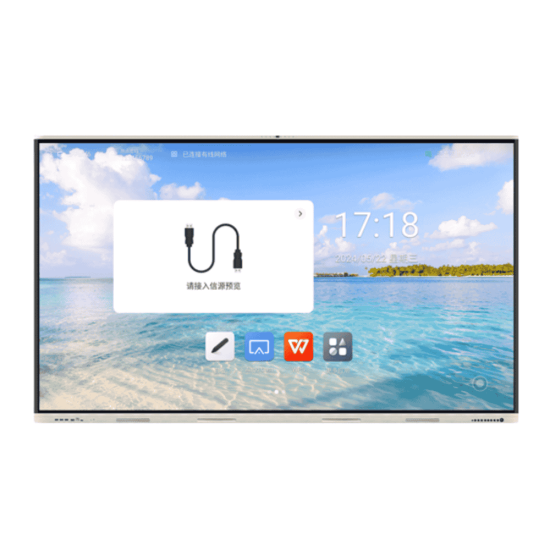

NEO COM S/M85 85-inch 4K Ultra HD Interactive Smart Display Android Windows Infrared Touch 8 Mic Array 48MP Camera Wi-Fi Bluetooth

Product Overview

The NEO COM S/M85 is a professional 85-inch 4K Ultra HD interactive smart display engineered for large classrooms, corporate boardrooms, training centers, and collaborative spaces. With a 16:9 aspect ratio, 5000:1 contrast ratio, and 350 cd/㎡ brightness, it delivers crisp visuals with rich colors and excellent clarity. Its 89° viewing angles on all sides ensure content is clearly visible from every corner of the room.

Powered by Android 11/12 OS (optional) and a T982/311D chipset, the S/M85 supports smooth multitasking, fast app execution, and highly responsive touch interactions. The 20-point infrared touch panel (capacitive optional) enables precise annotations, gestures, and collaborative activities.

Optional Windows 10/11/12 slot-in PC support expands functionality, allowing full desktop applications alongside Android apps. Equipped with dual 10W speakers, an 8-mic array, and a 48MP camera (12/16MP wide-angle optional), it provides immersive audio-visual experiences for video conferencing, online learning, and presentations. With a lifespan of ≥50,000 hours, the S/M85 ensures reliable performance for long-term use.

Key Features

• 85-inch 4K Ultra HD Display with optional 2K resolution.
• High Brightness & Contrast: 350 cd/㎡, 5000:1 contrast ratio.
• Wide Viewing Angle: 89° on all sides for consistent clarity.
• Infrared Touch: 20-point touch panel (capacitive optional) for precise interactivity.
• Powerful Hardware: T982/311D chipset, 3GB RAM (expandable to 4GB), 32GB ROM (expandable to 128GB).
• Connectivity: USB2.0/USB3.0 x2, HDMI, VGA, RJ45, DC input, and audio ports.
• Wireless: Dual-band Wi-Fi 2.4G/5G and Bluetooth 4.2/5.0.
• Audio & Visual: Dual 10W speakers, 8-mic array, and 48MP camera.
• Optional Windows Slot-In PC: i3/i5/i7 processor, up to 16GB RAM, up to 2TB storage.
• Durable & Customizable: Silver, Black, or custom colors, optional extended warranty.
• Optional Accessories: Floor stand, projector, smart pen, stylus.
• Energy Efficient: Standby ≤0.5W, input voltage 110–240V 50/60Hz.

Applications

• Large corporate boardrooms for meetings and presentations.
• Universities and classrooms for smart learning and interactive lessons.
• Training centers and workshops for real-time collaboration.
• Public spaces for digital signage and information displays.
• Retail and hospitality environments for customer engagement.
• Command and monitoring centers for data visualization and operations.

Installation & Setup (Step-by-Step)

• Unpack the display and verify all included accessories: wall mount kit, stylus x2, remote control, power cord, manual.
• Choose an installation location with optimal viewing height and distance.

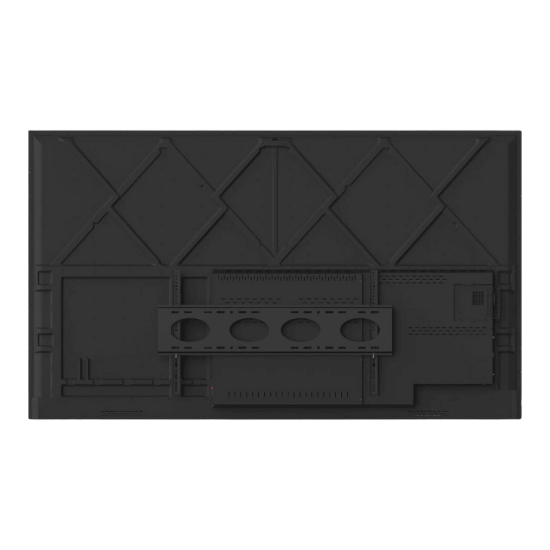

• Mount the display using the included VESA-standard wall mount or optional floor stand.
• Connect power and switch on the display.
• Connect to the network via Wi-Fi (2.4G/5G) or LAN (RJ45).
• Boot Android 11/12 OS or the optional Windows slot-in PC.
• Calibrate the touch panel if required for accurate response.
• Install necessary applications or software.
• Test audio, microphone array, and camera for conferencing or learning.
• Verify all connectivity and peripheral ports before regular use.

Environmental & Operating Conditions

• Power Consumption: 400W.
• Standby: ≤0.5W.
• Input Voltage: 110–240V, 50/60Hz.
• Operating Temperature: Suitable for indoor use.
• Humidity: Compatible with standard indoor conditions.
• Lifespan: ≥50,000 hours.
• Noise Level: Near-silent operation.
• Thermal Management: Built-in cooling ensures stable performance.

Global Availability

The NEO COM S/M85 is available worldwide with multilingual OS support, customizable configurations, and optional extended warranties. Its dual OS support, universal connectivity, and optional accessories make it ideal for global classrooms, corporate offices, training centers, public spaces, and commercial environments, delivering professional-grade performance wherever deployed.
