Product Overview

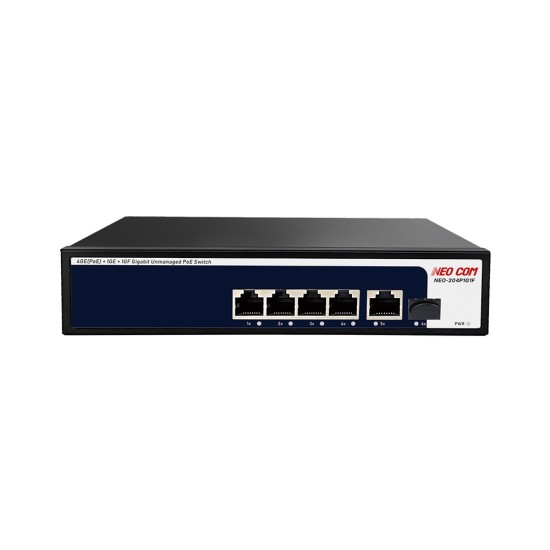

The NEO COM NEO-204P1G1F is a high-performance, reliable, and cost-effective unmanaged Ethernet switch, designed for modern office, retail, industrial, and smart home networks. Featuring 4 PoE-enabled 10/100/1000Mbps ports, 1 Gigabit RJ45, and 1 SFP uplink, this switch delivers fast, stable, and secure network connectivity. Its dual uplink design provides flexibility for long-distance fiber backbone connections as well as Gigabit Ethernet integration, making it a future-proof solution for growing network demands.
With advanced Smart PoE++ power management, the NEO-204P1G1F powers devices such as IP cameras, wireless access points, and access control systems directly over a single cable. The switch supports PoE scheduling, prioritization, and AI-assisted remote reboot, ensuring 24/7 uptime while reducing installation costs by over 40%. Additionally, its 6kV surge protection safeguards connected devices from electrical hazards, enhancing network reliability in harsh environments.
Key Features
- 4×10/100/1000Mbps PoE Ports: Deliver both power and data to PoE-enabled devices, eliminating the need for separate power adapters.
- 1 Gigabit RJ45 & 1 SFP Uplink: Provides high-speed connectivity for local or long-distance fiber networks, supporting backbone links up to 100 km with minimal signal loss.
- Smart PoE++ Management: Schedule PoE on/off, prioritize critical devices, and remotely reboot frozen devices to maintain network stability.
- VLAN Isolation & Security: Improves network security and prevents broadcast storms across connected devices.
- 6kV Surge Protection: Protects both the switch and connected devices from lightning and electrical surges.
- Plug-and-Play Unmanaged Design: Hassle-free setup with auto-negotiation and MDI/MDIX support.
- Fanless & Silent Operation: Ideal for offices, homes, and noise-sensitive environments.
- Compact & Durable: Rack-mount compatible, lightweight (<0.7kg), and built for long-term deployment.
- LED Indicators: Monitor power, PoE, and network activity for real-time diagnostics.
Applications
The NEO-204P1G1F switch is suitable for a wide range of network environments:
- Security Networks: Power and connect IP surveillance cameras for uninterrupted 24/7 monitoring.
- Enterprise & Office Networks: Connect VoIP phones, Wi-Fi access points, and workstations efficiently.
- Retail & Hospitality: Reliable connectivity for POS systems, digital signage, and guest Wi-Fi networks.
- Smart Homes: Simplifies setup for smart cameras, APs, and home automation devices.
- Industrial Deployments: With surge protection and wide temperature operation, it is suitable for harsh environments.
Installation & Setup Notes
- Plug-and-Play: No configuration needed; devices work instantly once connected.
- PoE Device Support: Compatible with IEEE 802.3af/at standards for safe and efficient power delivery.
- Uplink Flexibility: 1 SFP and 1 Gigabit RJ45 uplink for integration into existing fiber or Ethernet networks.
- LED Monitoring: Check power, PoE, and network activity in real-time.
- Mounting Options: Supports wall-mount or rack-mount installation for flexible deployment.
Hardware & Switching Specifications
- Connectors: 5×10/100/1000BASE-T RJ45 auto MDI/MDIX, 1×1000 Base-X SFP slot
- PoE Ports: 4×10/100/1000Mbps PSE ports
- SFP Compatibility: Single/Dual fiber, distance varies by module
- Switch Architecture: Store-and-forward
- Backplane Bandwidth: 12Gbps
- Packet Forwarding Rate: 8.93Mpps
- MAC Address Table: 4K with auto-learning and auto-aging
- Shared Data Buffer: 2.1Mb
- Jumbo Frame Support: 9K Bytes
- Flow Control: Back pressure for half-duplex, IEEE 802.3x pause frame for full-duplex
PoE Specifications
- PoE Standards: IEEE 802.3af (15.4W per port), IEEE 802.3at (30W per port)
- PoE Type: End-span 1/2(+), 3/6(-)
- PoE Power Budget: Maximum 65W for all PoE ports combined
- Power Management: AI remote reboot, PoE scheduling, and prioritization to maintain uptime and efficiency
Environmental & Safety Specifications
- Operating Temperature: -20℃ to 55℃
- Storage Temperature: -30℃ to 75℃
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–95% non-condensing
- ESD Protection: Contact discharge 6kV, air discharge 8kV
- Surge Protection: Differential ±2kV, common ±4kV
- Certifications: FCC Part 15 Class A, CE, RoHS compliant
Global Availability
The NEO COM NEO-204P1G1F is available worldwide through authorized distributors and online resellers. Its combination of high-speed PoE connectivity, dual uplink flexibility, intelligent power management, VLAN isolation, and surge protection makes it an ideal choice for businesses, security integrators, and smart home deployments requiring reliable, secure, and future-proof network performance.
