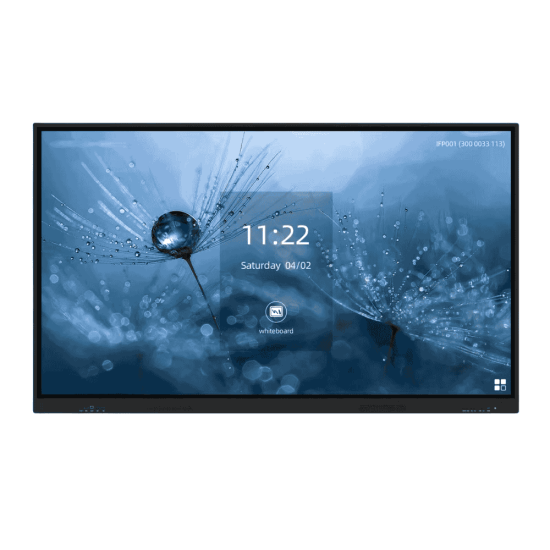

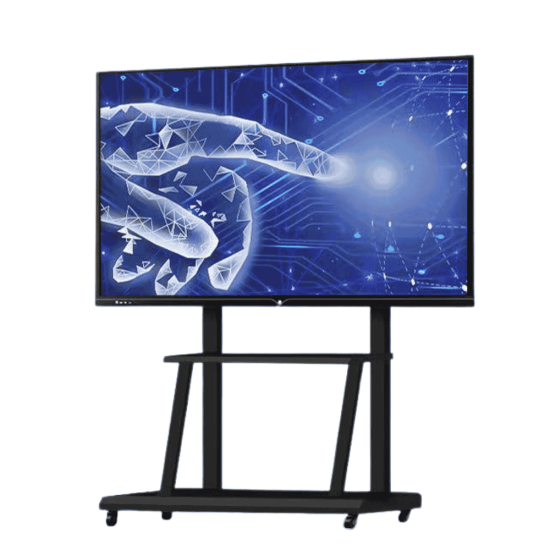

NEO COM S/M65 65-inch 4K Ultra HD Interactive Smart Display (Android + Windows)

Product Overview

The NEO COM S/M65 is a cutting-edge 65-inch 4K Ultra HD interactive smart display designed for modern classrooms, corporate boardrooms, training centers, and collaborative workspaces. With a 16:9 aspect ratio, 5000:1 contrast ratio, and 350 cd/㎡ brightness, it delivers stunning visuals with deep clarity and vibrant colors. The wide 89° viewing angle ensures that content is clear and legible from every corner of the room.

Equipped with Android 11/12 OS (optional) and powered by the high-performance T982/311D chipset, the S/M65 supports seamless multitasking, smooth app execution, and interactive sessions. Its 20-point infrared touch panel (capacitive optional) allows precise annotations, gestures, and digital whiteboarding. Optional Windows 10/11/12 slot-in PC support makes it a hybrid display capable of running full desktop applications alongside Android apps.

The display features dual 10W speakers, an 8-mic array, and a 48MP camera (optional 12MP/16MP wide-angle), providing an immersive audio-visual experience for video conferences, presentations, and online learning. With a lifespan of ≥50,000 hours, the S/M65 is built for long-term reliability and professional-grade performance.

Key Features

• 65-inch 4K Ultra HD Display with optional 2K support and vivid 16.7 million colors.
• High Contrast and Brightness: 5000:1 contrast ratio and 350 cd/㎡ for sharp visuals.
• Wide Viewing Angle: 89° on all sides for consistent clarity.
• Infrared Touch Technology: 20-point touch for annotation, drawing, and collaboration (capacitive optional).
• High Performance: T982/311D chipset, 3GB RAM (expandable to 4GB), 32GB ROM (expandable to 128GB).
• Multi-Connectivity: USB2.0, USB3.0, HDMI, VGA, RJ45, audio, and DC input.
• Wireless Integration: Dual-band Wi-Fi 2.4G/5G and Bluetooth 4.2/5.0.
• Audio-Visual Excellence: Dual 10W speakers, 8-mic array, and 48MP camera for conferencing and interactive sessions.
• Windows Slot-In PC Support: i3/i5/i7 processors, up to 16GB RAM, and up to 2TB storage.
• Durable Build: Sleek Silver/Black or customized finishes with optional extended warranty.
• Energy Efficient: Standby power ≤0.5W, input voltage 110–240V 50/60Hz.

Applications

The NEO COM S/M65 is ideal for a wide range of environments:

• Corporate Boardrooms: Interactive meetings, presentations, and video conferences.
• Education: Smart classrooms, remote learning, and collaborative lessons.
• Training Centers: Real-time annotation, workshops, and skill development.
• Public Spaces: Digital signage and information displays.
• Retail & Hospitality: Customer engagement and interactive advertising.
• Command Centers: Monitoring, data visualization, and coordination.

Installation & Setup (Step-by-Step)

• Unpack the Display: Verify all included accessories – wall mount kit, stylus x2, remote control, power cord, and manual.
• Select Installation Location: Choose a height and position suitable for clear viewing.

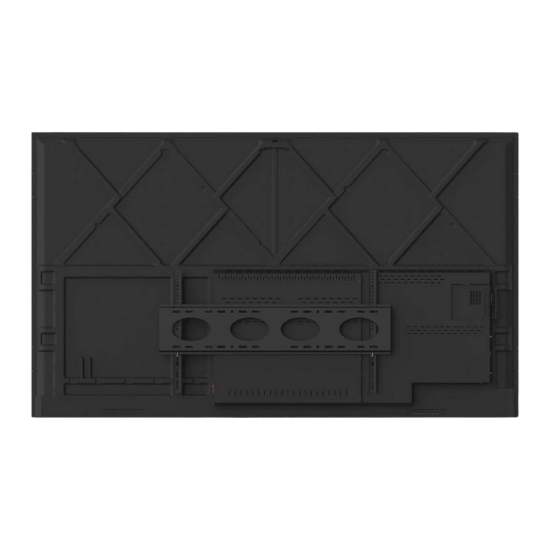

• Wall Mount the Display: Use the included VESA-standard wall mount kit to secure the display.
• Connect Power: Plug in the power cord and switch on the display.
• Network Setup: Connect via Wi-Fi (2.4G/5G) or LAN (RJ45).
• Initialize the OS: Boot Android 11/12 or optional Windows slot-in PC.
• Calibrate Touch: Ensure accurate response for annotation and gestures.
• Install Software/Apps: Add required apps for education, business, or signage.
• Audio Configuration: Test speakers and 8-mic array for video or audio conferencing.
• Final Testing: Check all ports, network connectivity, and peripherals before use.

Environmental & Operating Conditions

• Power Consumption: 260W typical usage.
• Standby Power: ≤0.5W for energy efficiency.
• Input Voltage: 110–240V, 50/60Hz compatible globally.
• Temperature & Humidity: Designed for stable indoor operation.
• Lifespan: ≥50,000 hours of consistent performance.
• Durability: Robust frame suitable for high-traffic professional environments.
• Noise Level: Near-silent operation for distraction-free environments.
• Heat Management: Built-in thermal control ensures reliable operation under continuous use.

Global Availability

The NEO COM S/M65 is available for worldwide distribution with multilingual OS options, extended warranty packages, and flexible configurations to meet international requirements. It is ideal for global classrooms, corporate offices, training centers, public spaces, and commercial applications, delivering professional-grade interactive display performance wherever deployed. Its universal connectivity, dual OS support, and robust design make it a trusted solution for enterprises and educational institutions worldwide.
